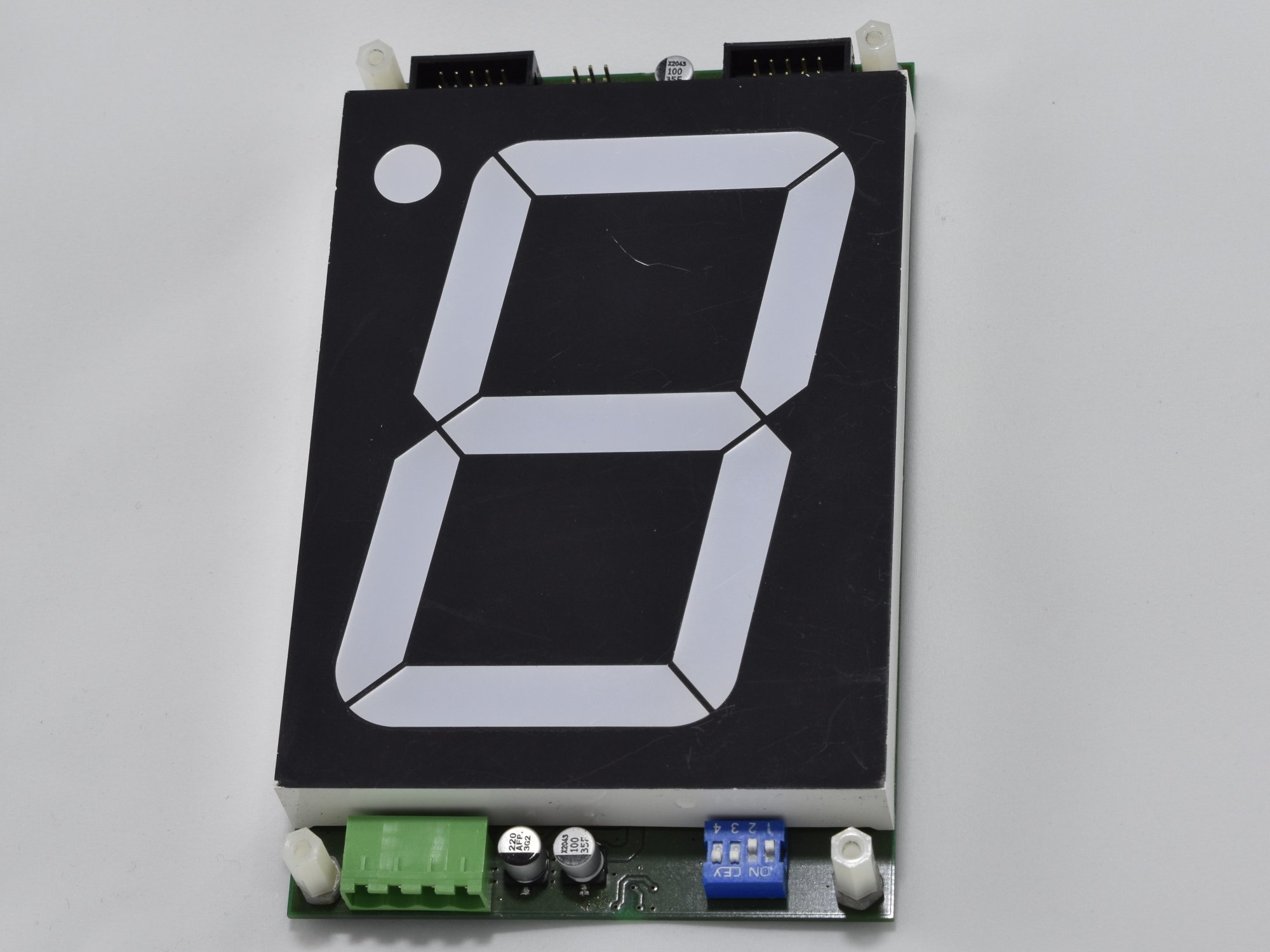

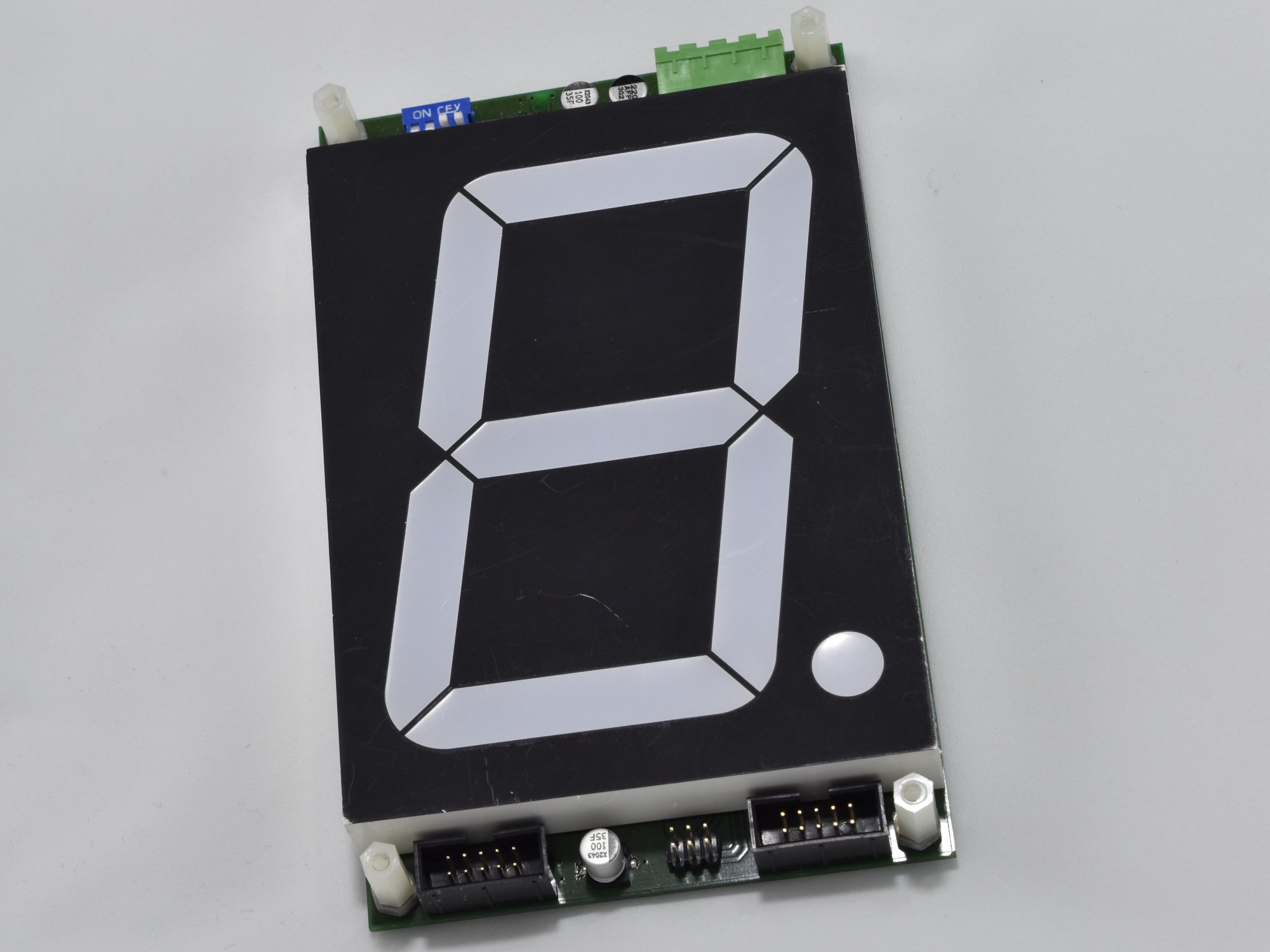

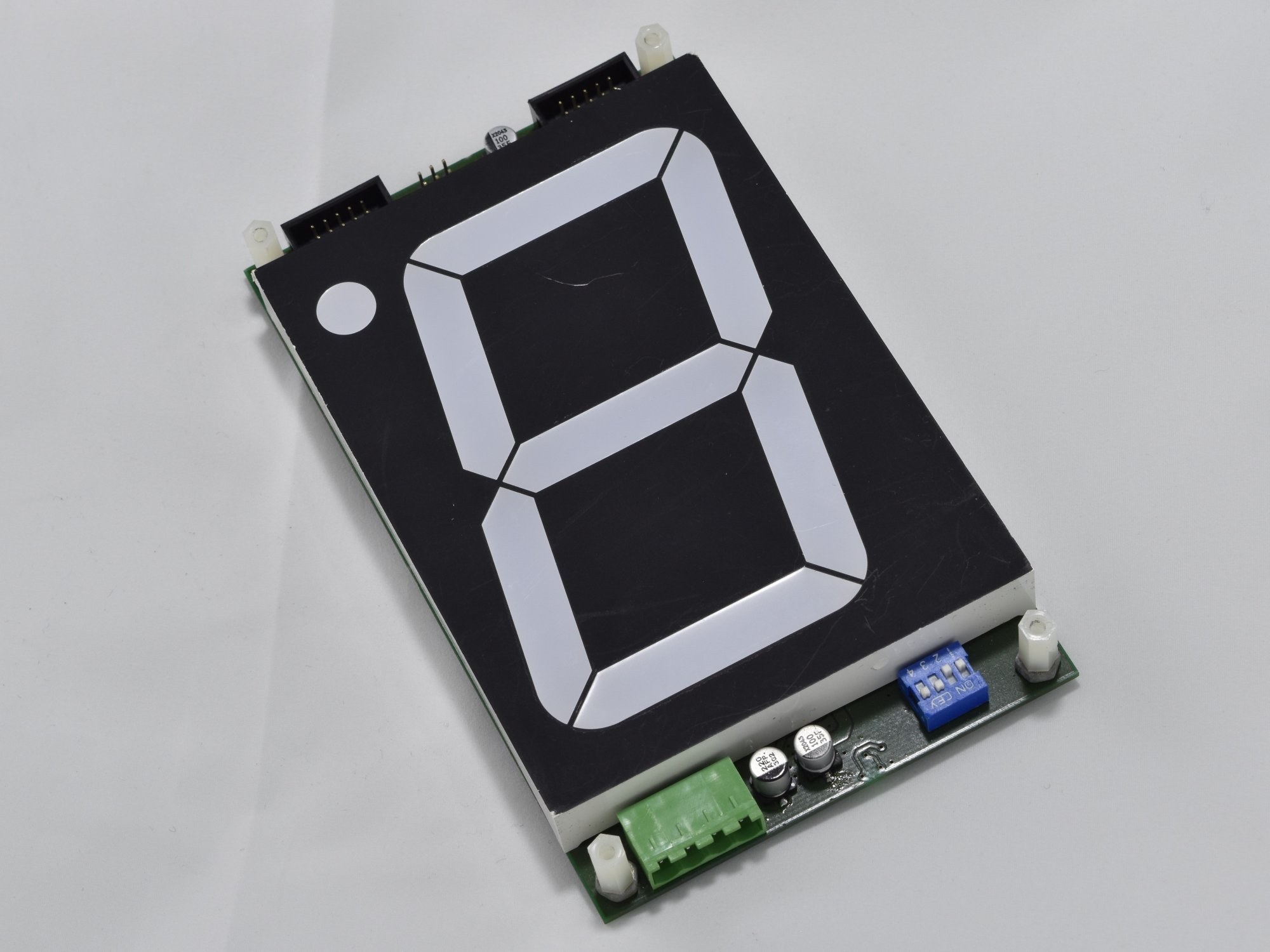

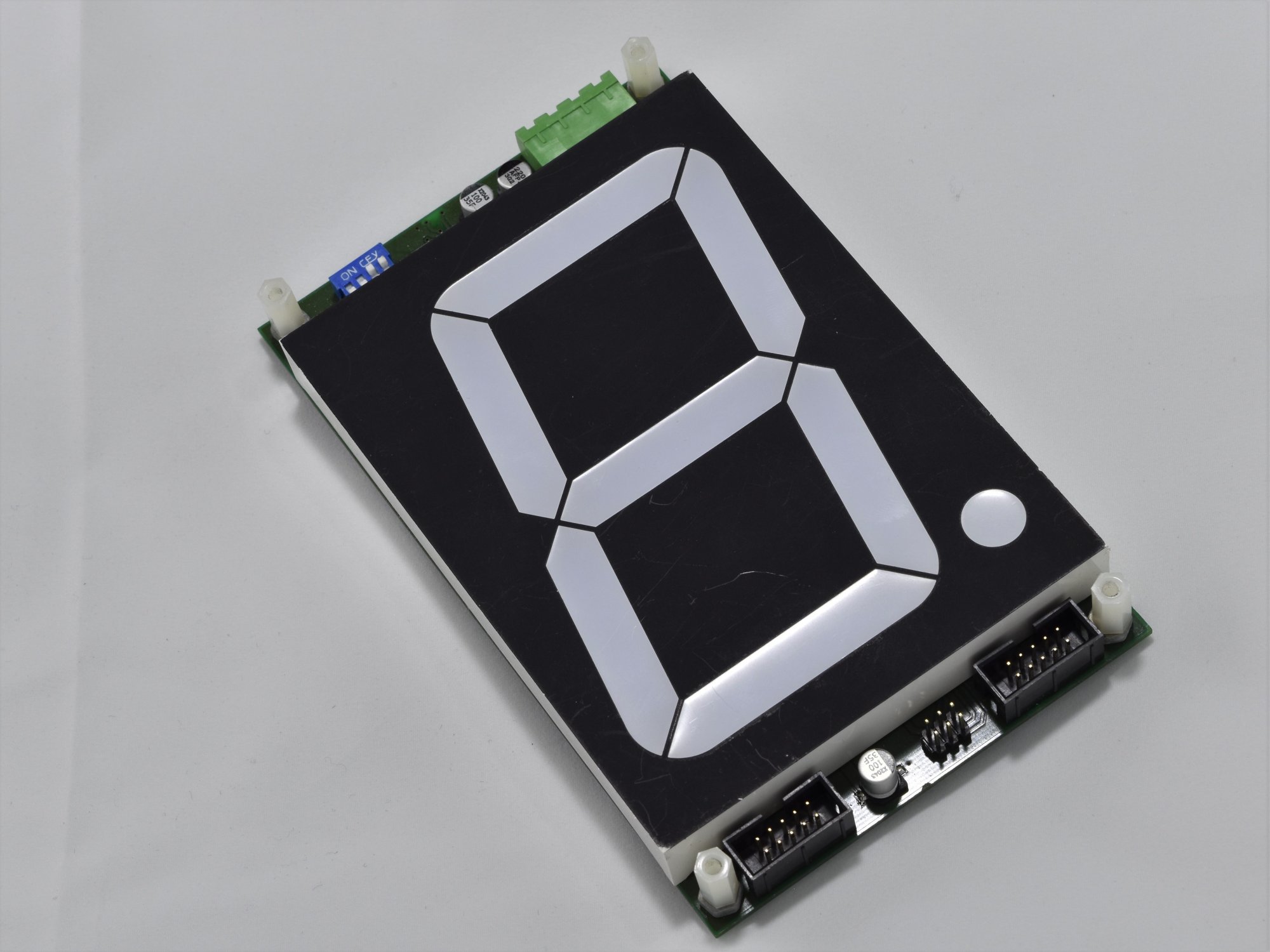

Large 7-Segment LED display
Temporarily unavailable
€ 159 (VAT excl.)
Not available for purchase
Description
Single LED Display module with RS-485 communication interface. This module allows to build multiple digit displays by chaining. Whole display can be controlled by single communication line.
Technical Parameters
| Parameter | Value |
|---|---|
| Communication interface | RS-485 |
| Power supply | Power supply 12 or 24V DC |
| Consumption | max. 500mA / 12V |
| PCB dimensions | 90 x 151 mm |
| Digit dimensions | 90 x 122 mm |
| Mounting holes pitch | 82 x 139 mm |
| Weight | 70g |
| Operation temperature | 0°C to 50°C |
| Protection | --- |
Downloads
| Title | Version | Size | |
|---|---|---|---|
| Technical Product Description | – | – | Download → |
