IOFirebug Engine Professional

Description

Engine board is equipped with a microcontroller and allows connection of external devices with PC. The board connects via USB (or RS-422 / RS-485) and contains following peripherals:

• 8x analog input
• 8x binary input (galvanically isolated)
• 8x switching N-FET output (galvanically isolated, all channels has common ground)
• RS-485 / RS-422 interface (configurable, galvanically isolated)
• USB to Serial interface (FTDI)
• SPI interface for expansion modules
• Power supply DC +5V for external devices (encoders, RaspBerryPi etc.)

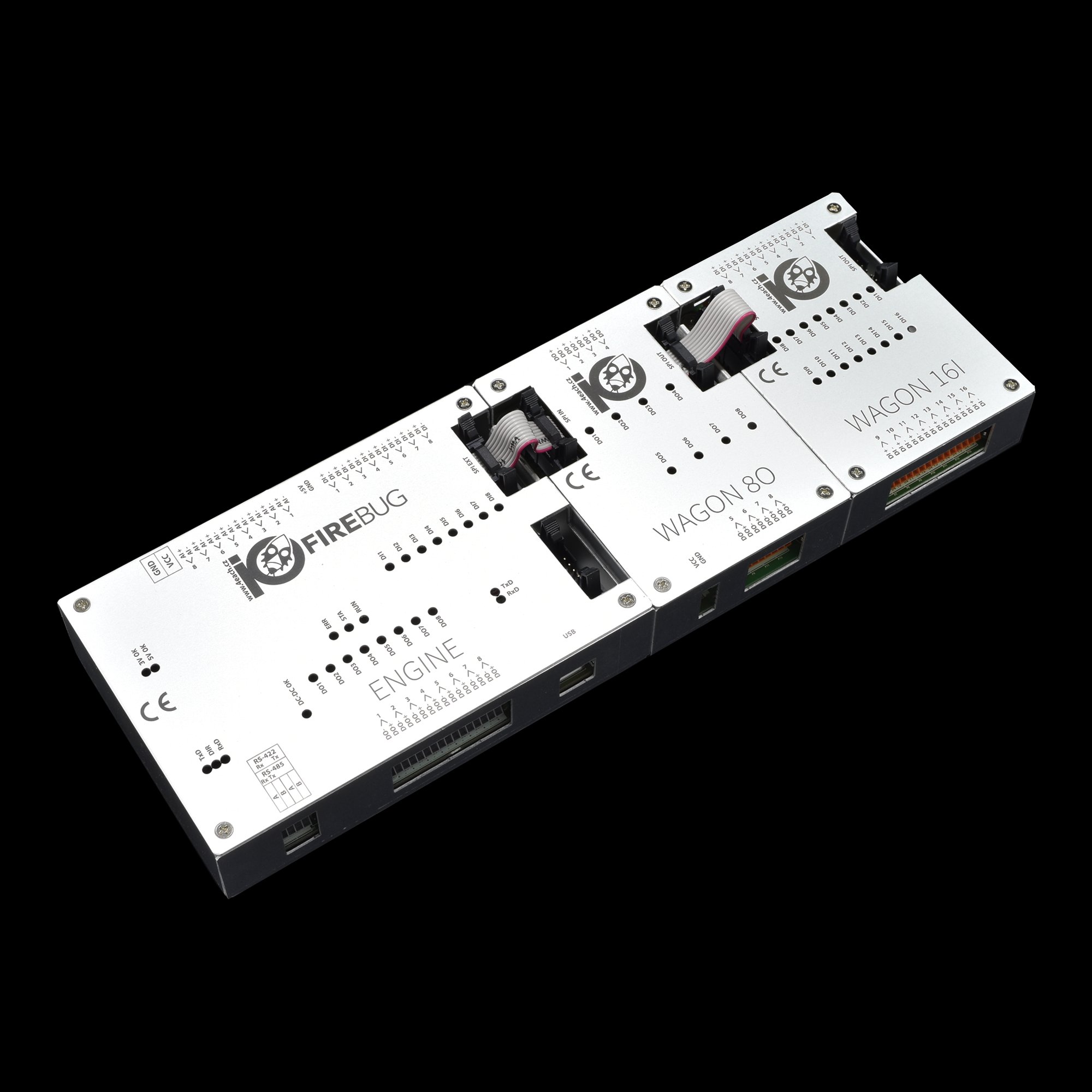

Engine board can be extended by Wagon modules connected via SPI interface according to your application needs. SPI interface accepts up to eight wagon modules. Wagon modules can expand the main board by number of inputs or outputs depending by the type of Wagon.
